Animate gif

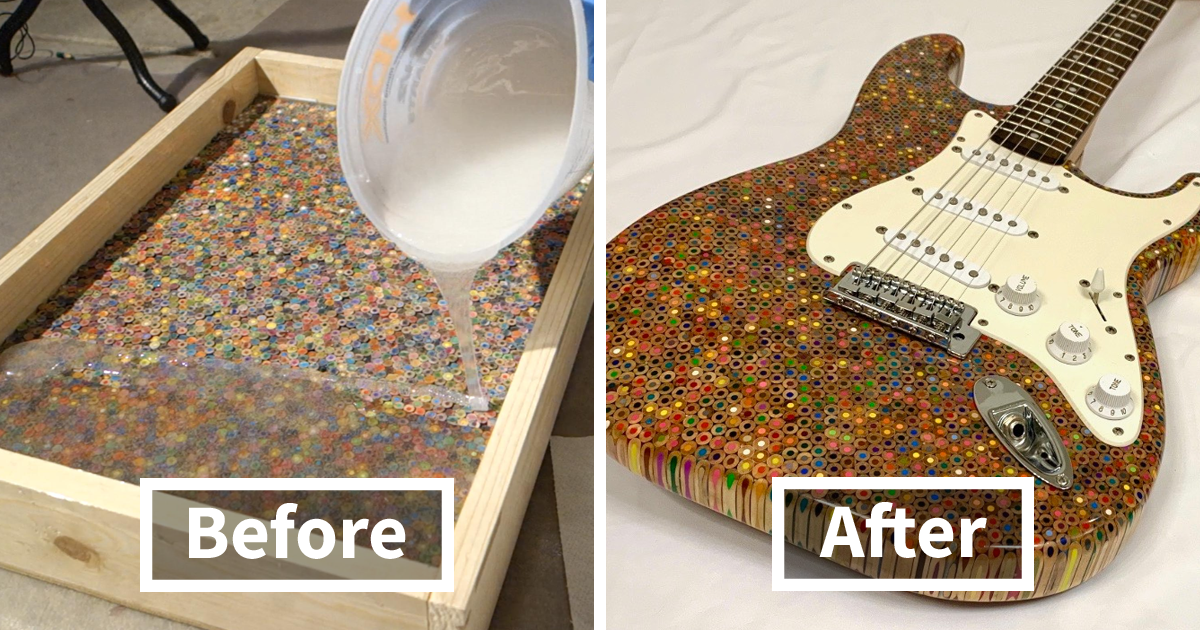

People make a lot of cool stuff from colored pencils. And when Burls Art saw them, he decided to take it up an octave. "I saw a lot of people online making bowls out of colored pencils and I thought that was really cool but I wanted to make something that I can actually utilize and enjoy more so than a bowl when it’s finished. Since I play guitar, I thought this would be a cool project. I decided on making a Stratocaster styled electric guitar"
“It was surprisingly not as difficult as I would have imagined,” he said. “The only real struggles didn’t come as much with the actual guitar building as much as it did with the colored pencil material. By that I mean, the color of the colored pencil would smear when sanded with high grit sandpaper and it looked awful. So I had to figure out a way to achieve good wood/lead color without smear (which I detail in the video at the end of this post).”
“That’s 1200 colored pencils. Bought the cheapest ones I could find on Amazon. They ended up being nearly identical to Crayola.”
Look
Source:
Look
Source:
“This is a milling jig that I made out of some spare wood I had. The router slides back and forth on here and the jig slides left to right so that I can take off about 1/8 ” off of the pencil slab. This essentially planes the slab for me”
Look
Source:
“The epoxy resin / pencils combination was far too dense for me to cut with a jig saw alone, even using a diamond blade. Because of this, I had to drill out the pencil cores to make life a little bit easier on the jig saw”

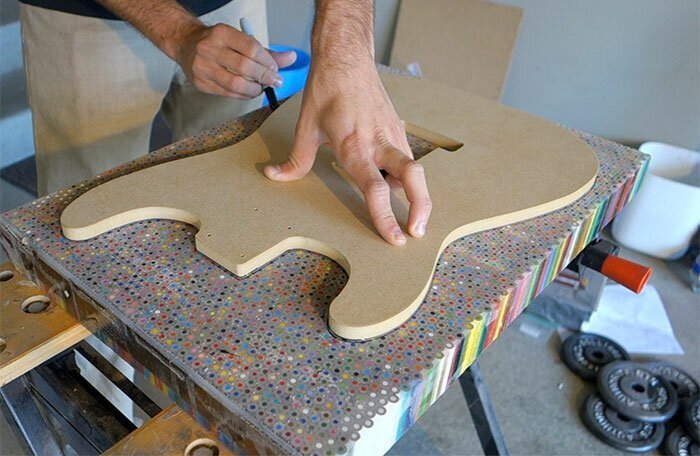

“Super gluing the template on. I taped a few strips of masking tape onto the guitar and a few strips onto the template… Little bit of superglue on the masking tape and connect them together. Makes for an incredibly strong lateral hold that can easily be pulled off with no damage done to either the guitar or template”
Look
Source:
“Routing the side of the body using a table router. This was another homemade jig using the wooden workbench and a 3×3 piece of melamine wood. Cut a hole in the middle of the melamine board and mount the router on the bottom side. Worked well. This 2.5″ router bit is a bit intimidating though, I cannot lie”
“This is an example of one of my struggles with the build. The entire block was sanded with 80 grit on the belt sander. Then the left side was progressively sanded up to 360 grit. So the higher grit I went, the more color smear would occur. Smearing was minimal until I went above about 220 grit. This left me with 2 choices.. either have a smooth surface and a grayish/smeared color tone… or… have good clean wood and led colors but at the cost of only being able to sand to 220. The choice was pretty obvious to me being that the colored pencils were the star of the build… I wanted to showcase their colors as much as possible”
“Drilling the neck mounting holes. I also drilled the bridge mounts at this time. This is like a portable drill press btw… Not as good as the real thing, but it gets the job done”
“Throwing on some clear coat! I used a 2-part spray enamel, which is really nasty stuff… but it gives a beautiful finish. Dumped the entire can on it in 5 coats”
“The more difficult portions of the build just had to do with figuring out ways to make use of the limited equipment and power tools that I had. For example, making a makeshift milling machine (ie: planer), making a router table out of my wooden workbench, etc.. But it goes to show that you can make a guitar in your garage with limited tools if you get a little creative.”
Burls Art couldn’t put an accurate number on the time it took him to complete his project. “I worked on it for 4-5 weeks for a few hours a day, like 2-4 hours probably. It took a long time, but for the most part, it was enjoyable. I think I could make one faster now though since I know the processes and things that I would do differently. I’d say I spent in the neighborhood of $500 on it, but some of that includes router bits and other pieces of equipment that I didn’t already have. I already had the guitar neck and hardware though so that saved some money.”
He was really happy with the final look of the guitar. “It’s a one-of-a-kind guitar as of now which I guess is pretty cool, though that’s probably soon to change now that the idea’s out of the bag.” He promised, however, that this won’t be his last unique guitar build. “I have a lot more ideas that I think will translate well that I’m going to take on in the future. Some that I think will even be more interesting than this colored pencil guitar.”
